FANUC Robots
Productivity is a long-time partner with FANUC America — the robotics industry leader for automated systems. They offer the most complete range of industry-leading robotic technologies for any type of automation solution. As an authorized FANUC integrator, we have extensive knowledge, training and experience in applying FANUC robots and technologies to create efficient, effective automated cells.
FANUC also offers a complete line of collaborative or robots. FANUC cobots have more payload, reach, speed, and features than any other brand. And you can expect even easier setup and programming with FANUC’s newly launched line of cobots, the CRX Series. Check out our most popular FANUC robots.
Robots
Collaborative CRX Series
Two lightweight, compact models designed to make installation and programming your cobots easier than ever before.

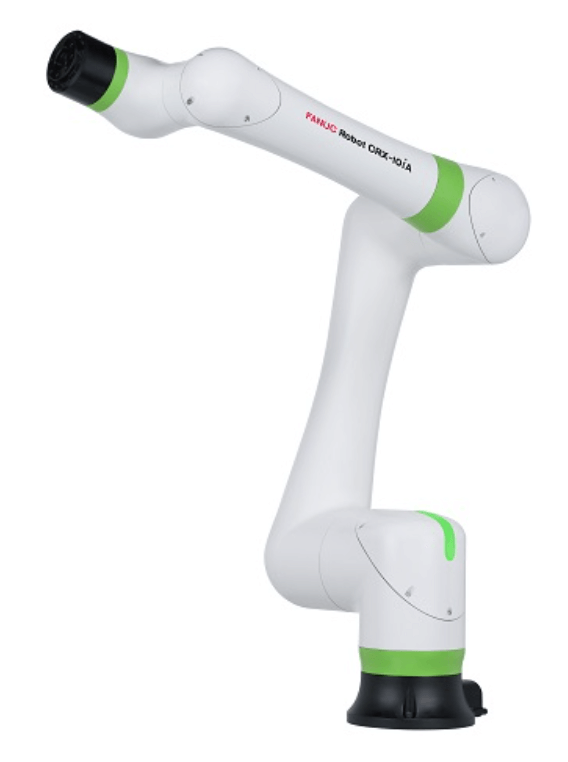

CRX-10iA
• Payload: 10 kg
• Reach: 1249 mm
CRX-10iA/L
• Payload: 10 kg
• Reach: 1418 mm
Go to CRX model page.

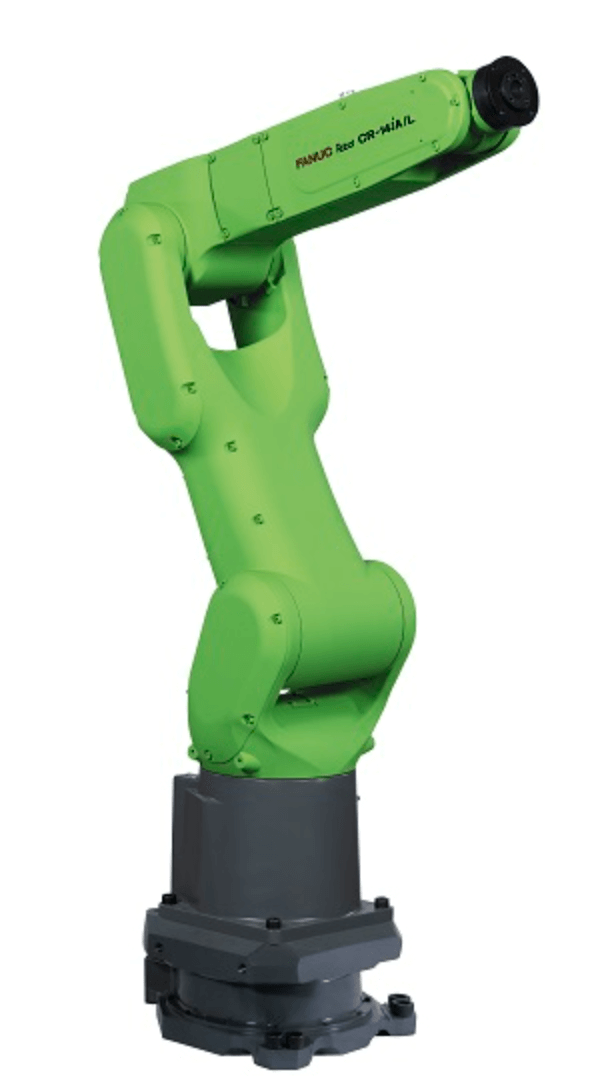

Collaborative CR Series
With 6 cobot models to choose from, ranging from 4-35 kg in payload and 550-1813 mm in reach, FANUC cobots offer more payload and more reach options than any other cobot brand.
Max. Payload: 4, 7, 15, 35 kg
Axes: 6
Reach: 550, 717, 911, 1441, 1813 mm
View specs and models

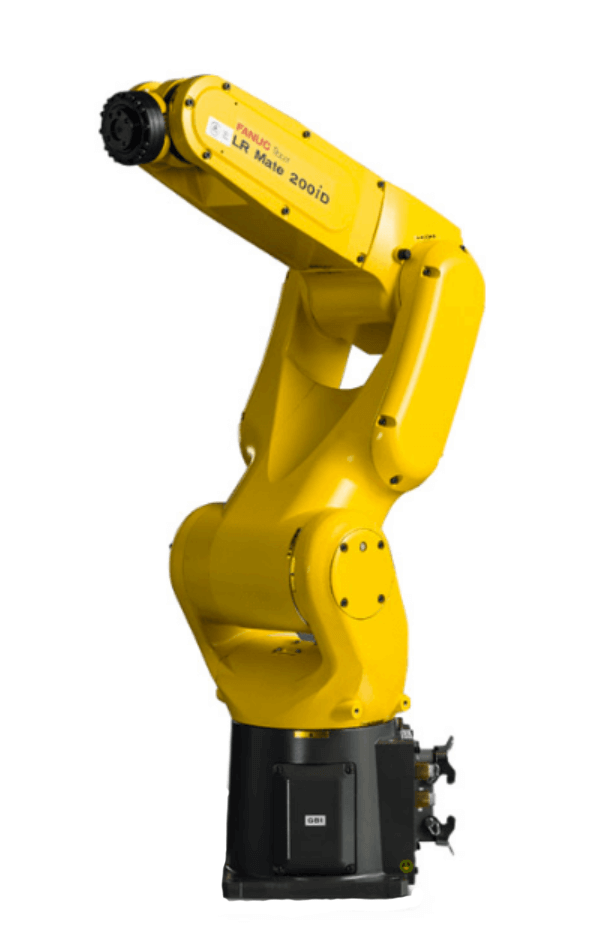

LR Mate Series
Compact mini robot with approximate size and reach of a human arm.
Max. Payload: 4, 7, 14 kg
Axes: 5, 6
Reach: 550, 717, 911 mm
View specs and models

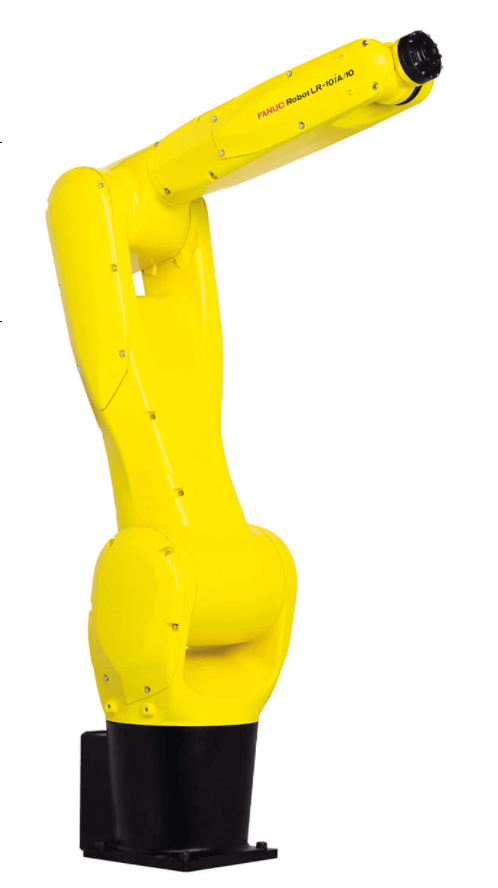

LR-10 Series
Compact 6-axis robot ideal for machine tending and a variety of picking applications in the warehousing and logistics markets.
Max. Payload: 10 kg (13 kg with restricted envelope)
Axes: 6
Reach: 1101 mm
View specs and models

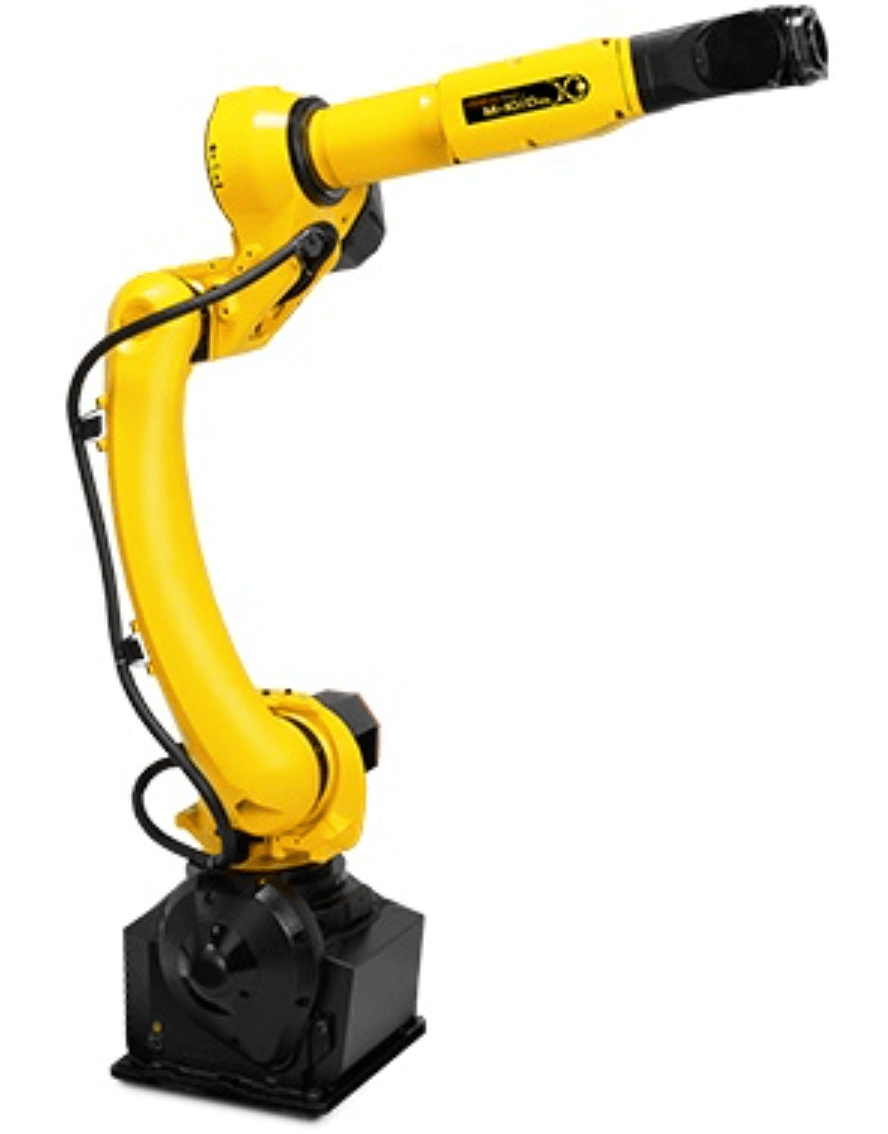

M-10 Series
Light payload handling robot with a cable-integrated arm.
Max. Payload: 8, 10, 12, 16 kg
Axes: 6
Reach: 1103, 1441, 1636, 2032 mm
View specs and models

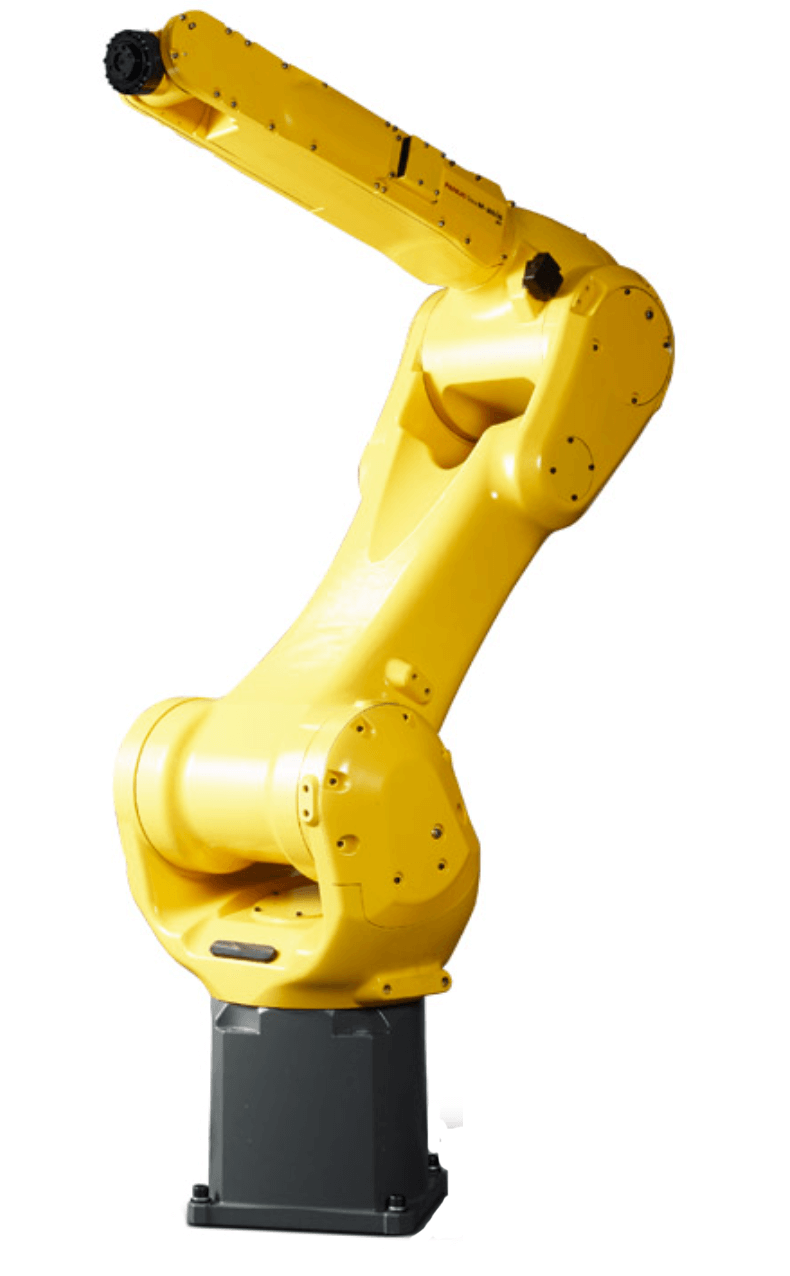

M-20 Series
Light payload handling robot with a cable-integrated arm.
Max. Payload: 12, 25, 35 kg
Axes: 6
Reach: 1445, 1831, 1853, 2272 mm
View specs and models

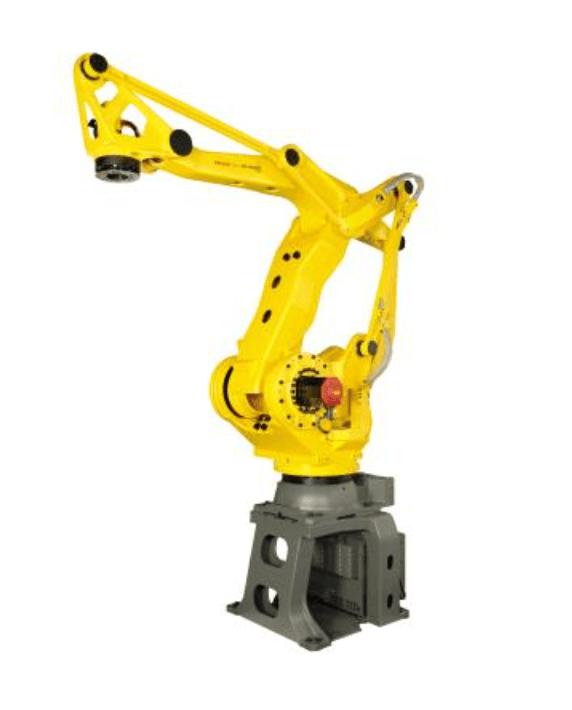

M-410 Series
This palletizing series increases throughput on palletizing and handling applications for nearly any medium to heavy palletizing payload.
Max. Payload: 110, 140, 185, 315, 500, 700 kg
Axes: 4, 5
Reach: 2403, 2850, 3143 mm
View specs and models

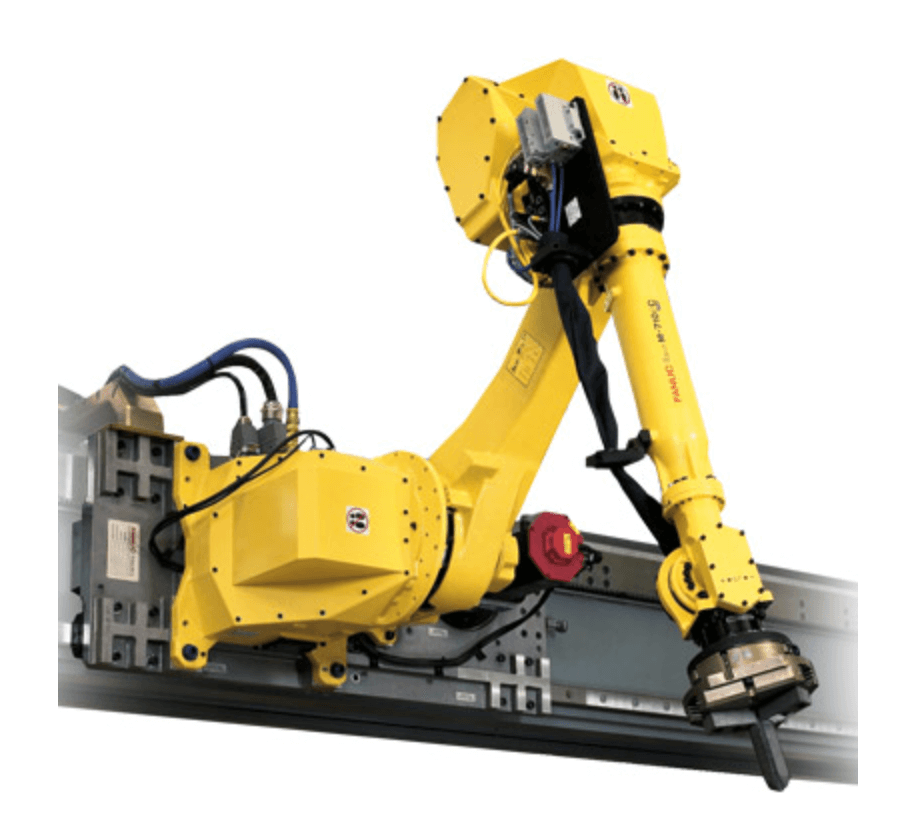

M-710 Series
Medium payload robot.
Max. Payload: 12, 20, 45, 50, 70 kg
Axes: 5, 6
Reach: 1359, 2003, 2050, 2582, 2606, 3110, 3123 mm
View specs and models
M-800 Series
High-rigidity, high-performance, high-accuracy robot.
Max. Payload: 60 kg
Axes: 6
Reach: 2040 mm
View specs and models

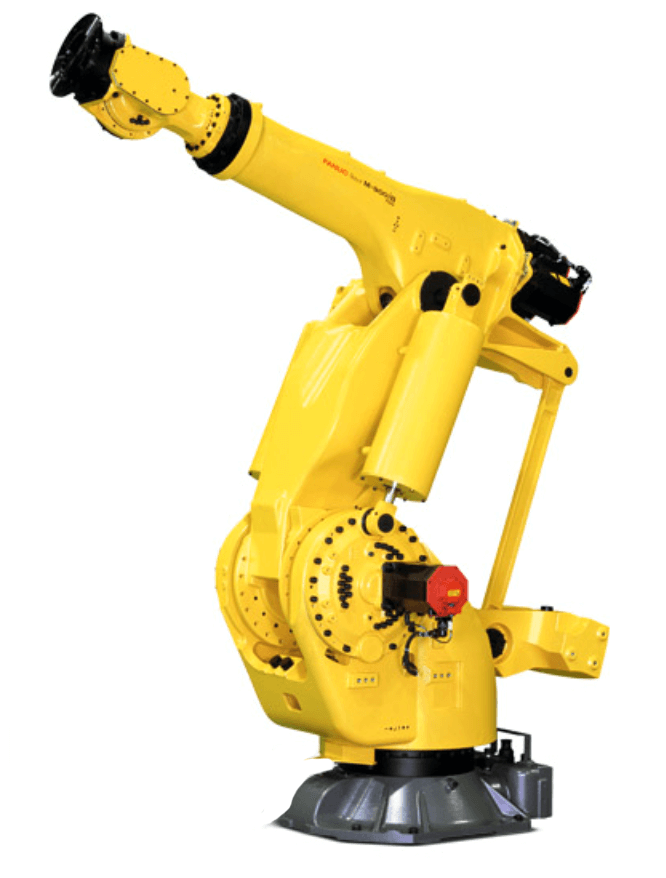

M-900 Series
This 6-axis robot series offers one of the highest payloads on the market
Max. Payload: 200, 280, 330, 360, 400, 700 kg
Axes: 6
Reach: 2655, 2832, 3203, 3507, 3704 mm
View specs and models

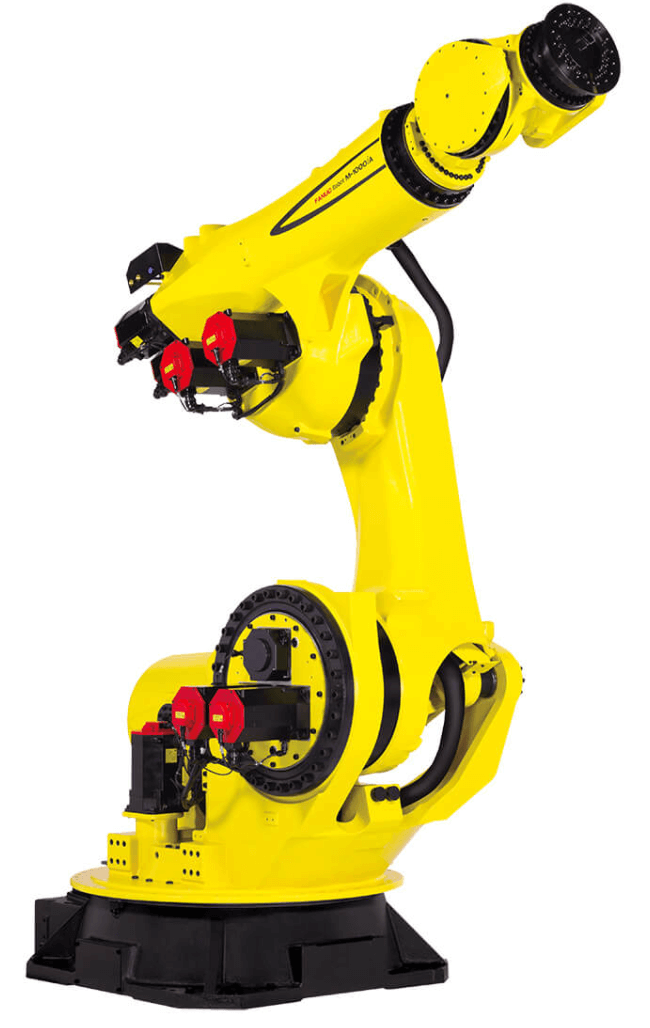

M-1000 Series
Large material handling robot can lift and manipulate heavy loads with more versatility
Max. Payload: 1000 kg
Axes: 6
Reach: 3253 mm
View specs and models
M-2000 Series
Comes with a handling capacity up to 2.3 t and a reach up to 4.7 m making it an ideal choice for handling and palletizing heavy parts.
Max. Payload: 900, 1200, 1700, 2300 kg
Axes: 6
Reach: 3734, 4683 mm
View specs and models

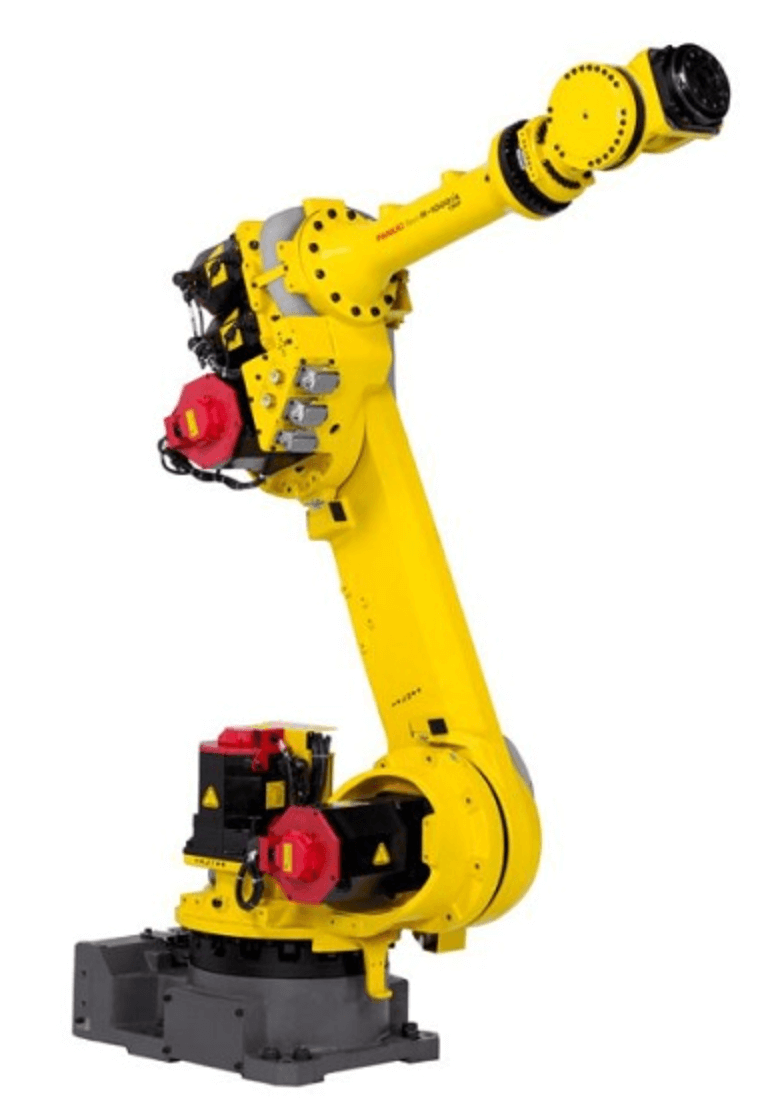

R-1000 Series
Fast, slim, reliable and ideal for handling applications involving medium payloads
Max. Payload: 80, 100, 120, 130 kg
Axes: 5, 6, 7
Reach: 2230 mm
View specs and models

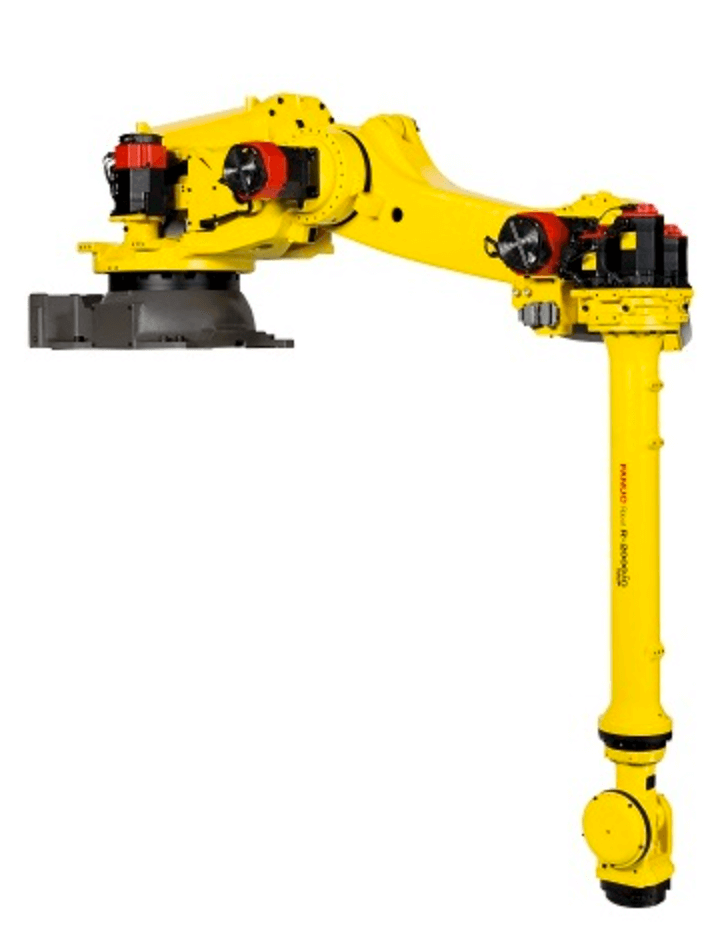

R-2000 Series
Compact and high speed for multiple applications involving high payloads
Max. Payload: 100, 125, 165, 170, 190, 210, 220, 240, 270 kg
Axes: 5, 6
Reach: 1520, 2450, 2518, 2605, 2655, 3095, 3100 mm
View specs and models
Controllers
System R30iB Controller
The R-30iB Plus Robot Controller feature the new iPendant with enhanced screen resolution and processing capability. The new user interface, iHMI, can display guides for setup and programming, as well as tutorials from the main home page which has a design common to FANUC CNCs, enabling easier use of robots. So easy, that even first-time robot users can create a program for a simple handling task and execute it in just 30 minutes using the programming guide.
Download specs
iPendant
The ergonomically designed iPendant is the next generation in user interface technology. The Internet-ready iPendant allows users to browse the information available on the Internet/Intranet. Users can also customize robot information displayed on the iPendant.
Download specs
Software Options
Dual Check Safety (DCS)
DCS position and speed check software option provides safety rated speed and position monitoring without additional hardware, external switches or relays.
Download specs
Force Sensor
FANUC force sensors provide unique capabilities for precision assembly, material removal and life cycle testing applications. They’re rugged, reliable and provide high resolution for robotic applications.
Download specs
IRVision
The FANUC System R-30iB™ Controller comes standard with iRVision hardware. Loading the vision software option and connecting a camera directly to the main CPU board allows users to immediately add a vision process to the robotic application.
Download specs
RoboGuide HandlingPRO
Offline robot simulation software products built on the Virtual Robot Controller. HandlingPRO allows users to simulate a robotic process in a 3D space or conduct feasibility studies for robotic applications without the physical need and expense of a prototype work cell setup.
Download specs
FANUC Robot Brochure
